EDGE FPGA ZYNQ Z10

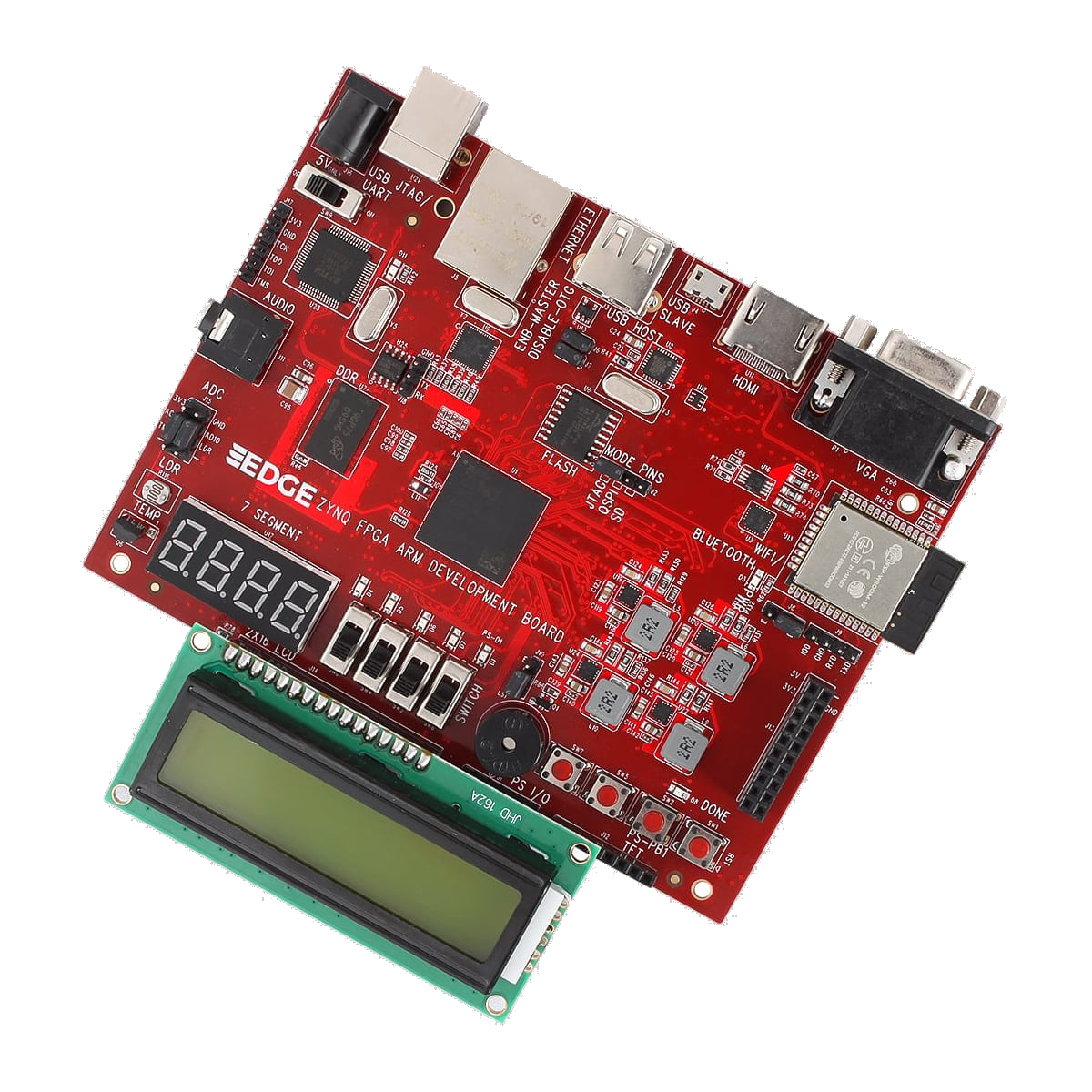

EDGE ZYNQ SoC FPGA Development Board is a feature rich and high-performance Single Board Computer built around the Xilinx Zynq-7010 (XC7Z010) . It features integrated dual-core ARM Cortex-A9 processor with Xilinx 7-series FPGA.

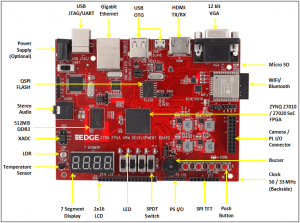

EDGE ZYNQ SoC FPGA Development Board is designed to create best learning experience of both processing system (PS) and programming logic(PL). It features Xilinx Zynq SoC, 512MB DDR3 SDRAM and 16MB QSPI Flash USB-to-UART, USB OTG, 10/100/1000Mbps Ethernet, HDMI, USB JTAG, Temperature sensor, Micro SD, WiFi, Bluetooth, ADC, LCD, 7 Segment, camera, TFT, Buzzer, Switches, buttons and LEDs.

Advantage of EDGE FPGA kit is easy to implement plenty of applications ranging from single board computer, Wireless control, Image/video Processing, Internet of Things without additional interfaces.

Xilinx offers free WebPACK™ versions of Vivado design suite, so designs can be implemented at no additional cost.

EDGE ZYNQ SoC FPGA Kit Broucher
