د.ج 126,120.00

Contrôleur de groupe électrogéne à démarage automatique et manuel avec synchroscope et interface J1939

En stock

EAN: N/A UGS : 2033 Catégorie :

Contrôleur de groupe électrogéne à démarage automatique et manuel avec synchroscope et interface J1939

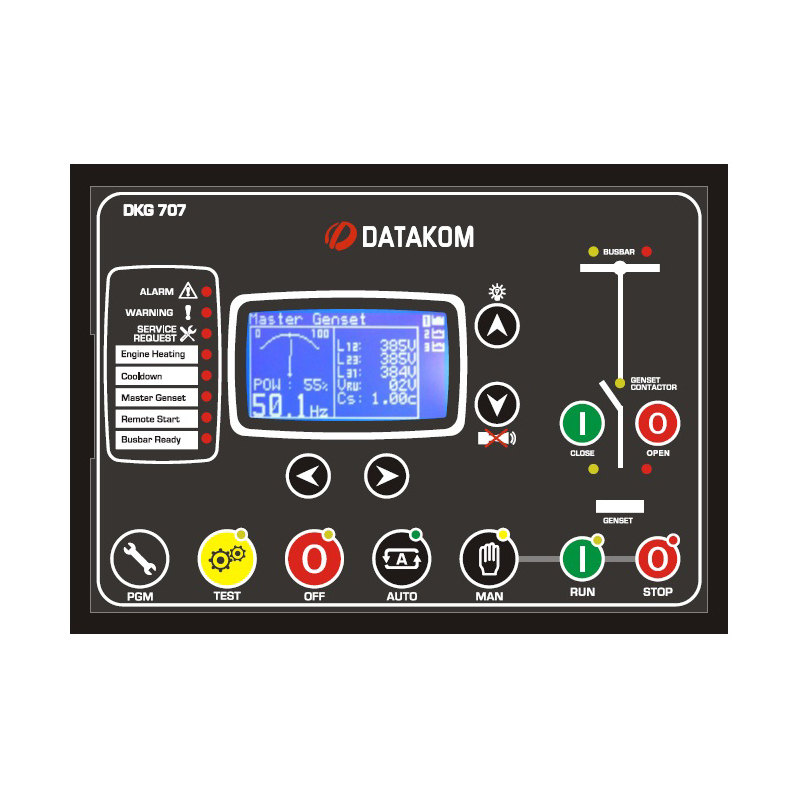

The DKG-707 is a comprehensive Manual and Remote Start unit for multiple generating sets operating in parallel with load sharing.The unit supports both diesel and gas gensets based on electronic and non-electronic engines. Up to 8 gensets may be combined together using DKG-707 units without the need for extra modules. The communication between modules is made with the Datalink connection.


  • Automatic and manual start
  • Multi genset synchronization (up to 8 gensets)
  • Multi genset load sharing (up to 8 gensets)
  • Both active and reactive load sharing
  • J1939 electronic engine monitoring and control
  • Various engine brands and models available
  • Gas engine support
  • True RMS measurements
  • Complete genset power measurements
  • Busbar voltages and frequency measurements
  • Dead bus sensing
  • Synchroscope
  • Built-in Governor control with external reference
  • Fully isolated built-in AVR control
  • Fully isolated datalink communication port
  • Magnetic pick-up input
  • Load dependent automatic Start/Stop
  • Load dependent quick and delayed start
  • Soft loading and unloading of gensets
  • Equal aging of gensets
  • Voltage transformer ratio for MV applications
  • Engine Idle speed control
  • Load shedding, load adding
  • AVR and GOV up/down relay functions
  • Droop operation capability
  • Earth fault current monitoring
  • Voltage and current unbalance monitoring
  • Periodic maintenance request indicator
  • Battery backed-up real time clock
  • Built-in daily, weekly, monthly exerciser
  • 500 event logs with time stamp and full snapshot
  • Statistical counters
  • Weekly operation schedule programs
  • Field adjustable parameters
  • Password protected front panel programming
  • User selectable screen formats
  • Software upgrade from PC (USB adapter needed)
  • Free MS-Windows Remote monitoring SW:
  • -monitoring, download of parameters
  •     -download of software updates
  • High visibility, blue color 128×64 pixels graphic LCD
  • User friendly graphic indicators and bar graphs
  • Dual language support
  • Customer logo display capability
  • Programmable PLC functions
  • Protected semiconductor digital outputs
  • Output expansion capability
  • Configurable analogue inputs: 4
  • Configurable digital inputs: 12
  • Configurable digital outputs: 8
  • Configurable led indicators: 5
  • Led/Relay output functions selectable from list
  • Survives cranking dropouts
  • Dimensions: 235 x 167 x 48mm (WxHxD)
  • Sealed front panel (IP65)
  • Plug-in connection system for easy replacment
