Feature:
1. Good linearity
2. High sensitivity
3. High stability
4. Low power consumption
5. Wide detection range
6. Schottky type photodiode, suitable for photoelectric mode
Specification:
Power consumption: power supply voltage 2.5V ~ 5V, working current is micro-amp
Detection range: 240-370 nm
Angle: 130 degrees
Size: 27 * 11mm/1.06*0.43″
Typical application:
Ultraviolet tester, ultraviolet watch, outdoor sports equipment, ultraviolet lamp monitoring, mobile phone, etc .; this product can be used especially in the field of mobile phone specifications, and has a linear current directly corresponding to the ultraviolet index (UV INDEX).
Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
Package included:
- Ultraviolet tester, ultraviolet watch, outdoor sports equipment, ultraviolet lamp monitoring, mobile phone, etc .; this product can be used especially in the field of mobile phone specifications, and has a linear current directly corresponding to t
- The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
- There may be slight size deviations due to manual measurement, different measuring methods and tools.

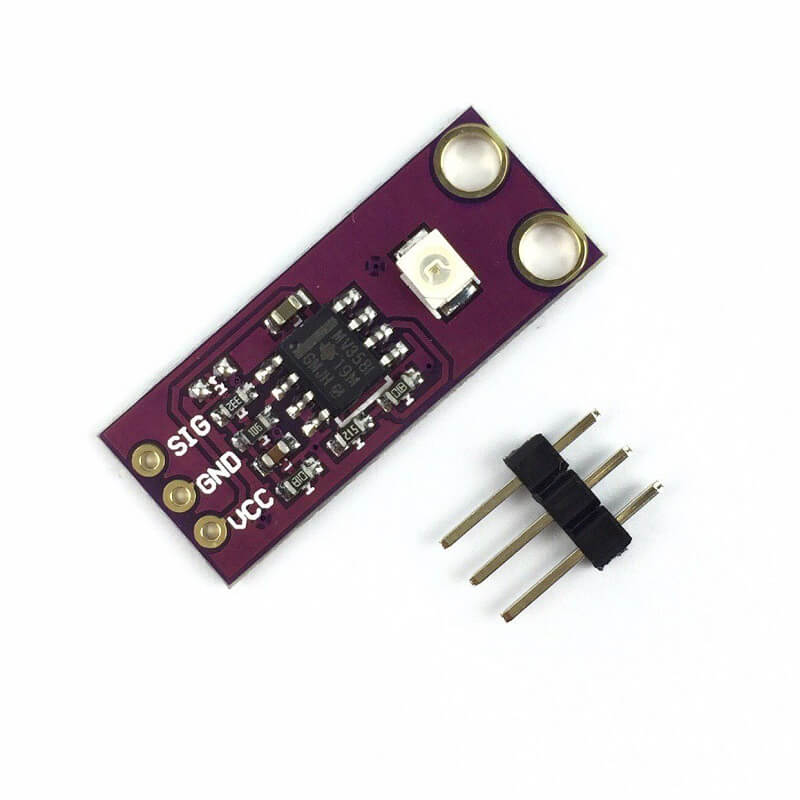

- HW-837 GUVA-S12SD UV Detection Sensor Module 240nm-370nm Ultraviolet Intensity Sensor
- Power consumption: power supply voltage 2.5V ~ 5V, working current is micro-amp
