- Caractéristiques :

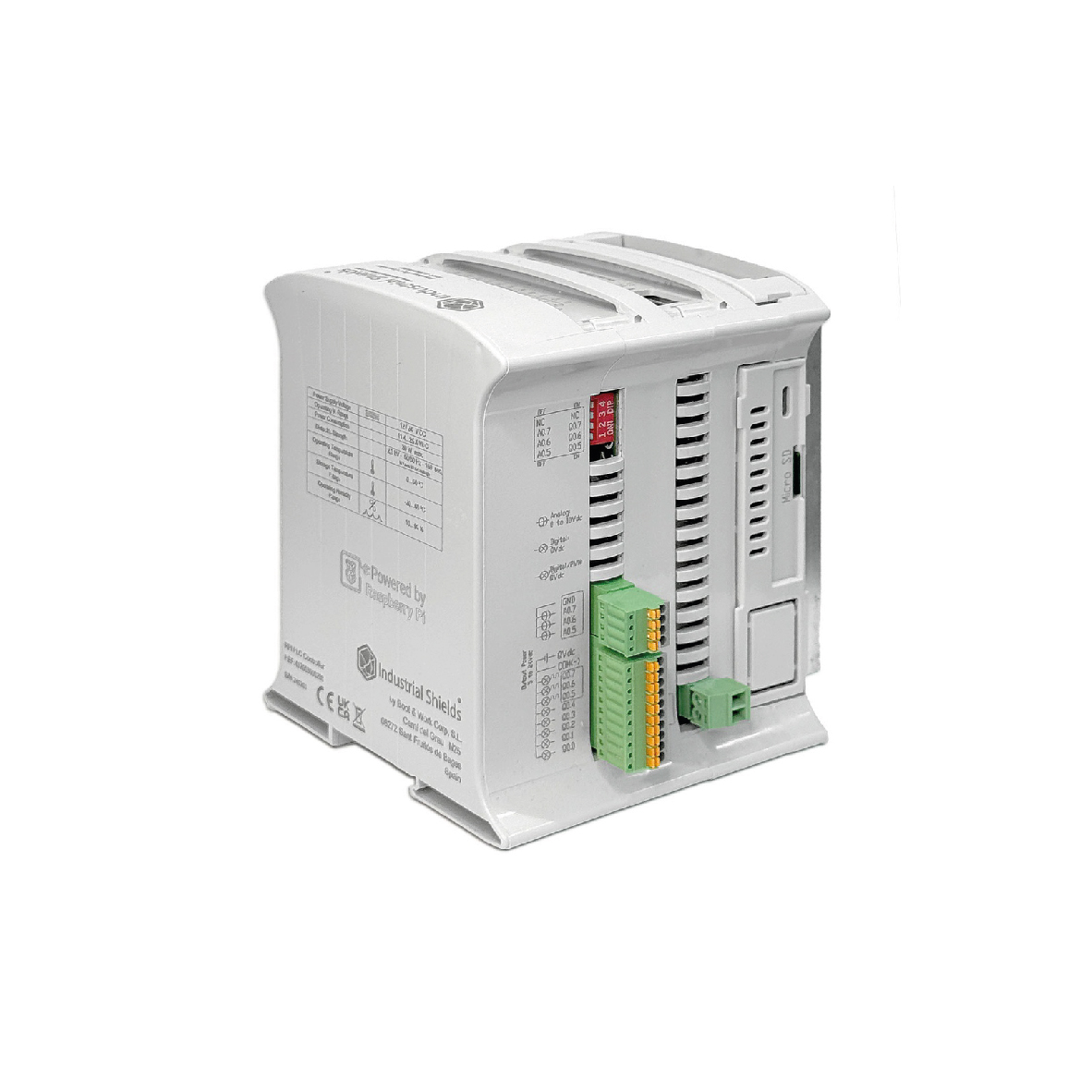

| MODEL TYPE | Raspberry PLC |
| Input Voltage | 12 to 24Vdc (Fuse protection (2.5A) Polarity protection) |
| Input rated voltage | 24Vdc |
| Rated Power | 30 W |
| I max. | 1.5A |
| Size | Check the Measures Table |
| SRAM | 2/4/8 GB |
| Communications | I2C, Ethernet (x2), USB (x4), RS485 (x2 HALF-Duplex), SPI , Wi-Fi, Bluetooth, Serial TTL,, µSD, RTC, µHDMI (x2) |
| Power supply voltage | DC power supply | 12 to 24Vdc |
| Operating voltage range | DC power supply | 11.4 to 25.4Vdc |
| Power consumption | DC power supply | 30 W MIN. . |
| External power supply | Power supply voltage | 24Vdc |
| Insulation resistance | 20mΩ min.at 500Vdc between the AC terminals and the protective earth terminal. | |
| Dielectric strength |
2.300 VAC at 50/60 Hz for one minute with a leakage current of 10mA max. Between all the external AC terminals and the protective ground terminal. |
|
| Shock resistance | 80m/s2 in the X, Y and Z direction 2 times each. | |
| Ambient temperature (operating) | 0º to 50ºC with Raspberry OS Lite | |
| Ambient humidity (operating) | 10% to 90% (no condensation) | |
| Ambient environment (operating) | With no corrosive gas | |
| Ambient temperature (storage) | -20º to 60ºC | |
| Power supply holding time | 2ms min. | |
| Weight | Review at the Measures Table | |
20230524_RASPBERRY_PI_PLC_DATASHEET.pdf- CE_RASPBERRY_PI_PLC.pdf
- RASPBERRY_PI_PLC_USERGUIDE.pdf
- 202301_BROCHURE_RASPBERRY_PI_PLC.pdf
