Reference Characteristics :

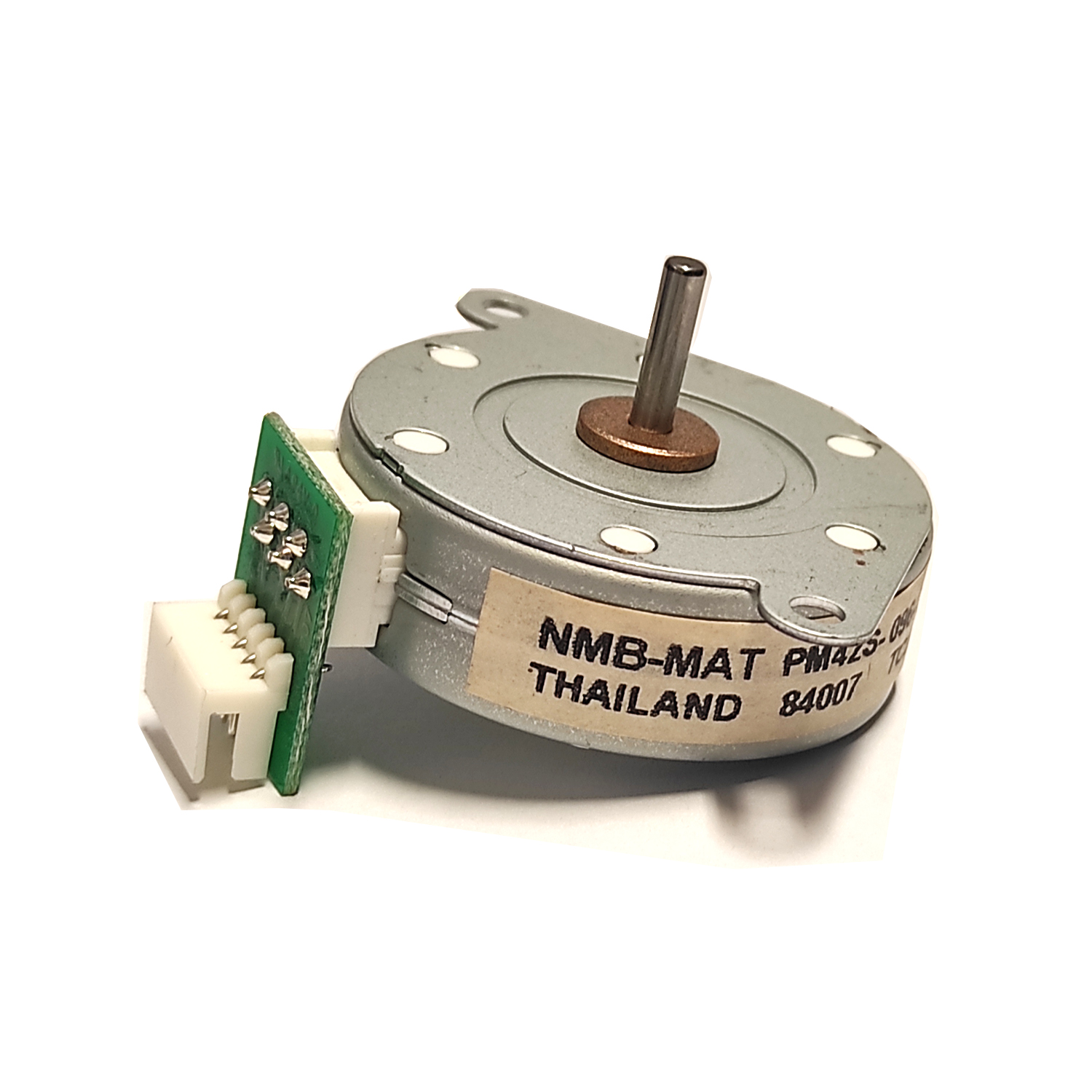

| Motor Size | PM42S-096 | |
| Number of Steps per Rotation | : 96(3.75°/Step) | |
| Drive Method | : 2-2 PHASE | |
| Drive Circuit |
UNIPOLAR CONST. VOLT. |
BIPOLAR CHOPPER |
| Current/Phase |
500[mA] |
|
| Coil Resistance/Phase |
: 90[Ω] |
10[Ω] |
| Drive IC |
: 2SC3346 |
UDN2916B-V |
| Magnet Material | : Nd-Fe-B bonded magnet (MS70) | |
| Insulation Resistance |
: 100M[Ω] MIN |
|
| Dielectric Strength |
: AC 500[V] 1[min] |
|
| Class of Insulation |
: CLASS E |
|
| Operating Temp. | : -10[°C] ~ 50[°C] | |
| Storage Temp. | : -30[°C] ~ 80[°C] | |
| Operating Hum. | : 20[%] RH ~ 90[%] RH | |
