Description
The CTXS-5306S is a fast recovery diode of 600 V /
30 A. The maximum trr of 35 ns is realized by optimizing
a life-time control. The low thermal resistance package
achieves high performance in terms of heat dissipation.

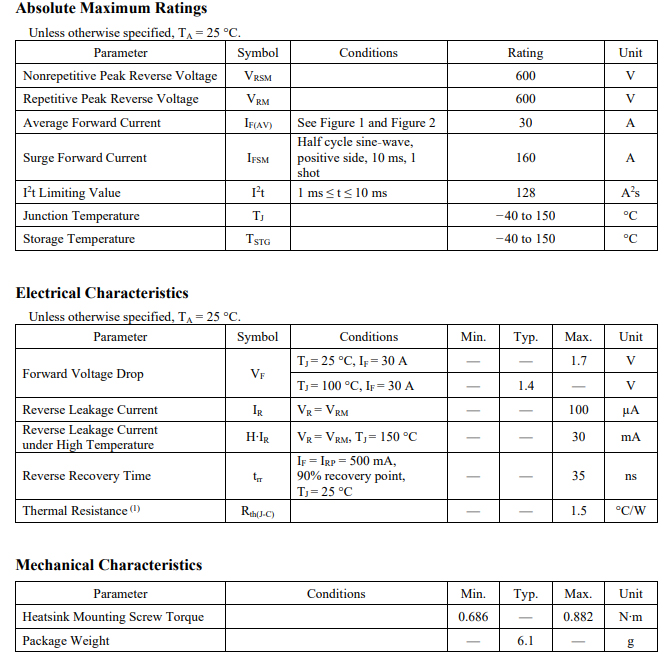

Features
● VRM—————————————————- 600 V
● IF(AV)—————————————————–30 A
● VF ——————————————————1.7 V
● trr——————————————————– 35 ns
● Bare Lead Frame: Pb-free (RoHS Compliant)
● Flammability: Equivalent to UL94V-0
Applications
● PFC Circuit
● Inverter Circuit
