Description :
The 74ABT827 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

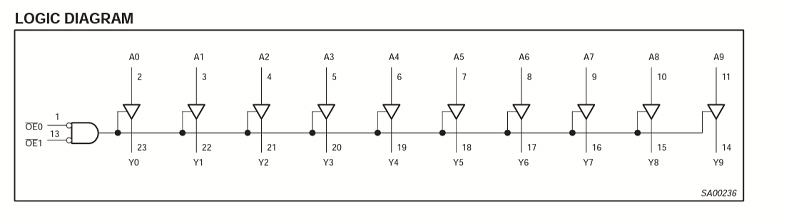

The 74ABT827 10-bit buffers provide high performance bus interface buffering for wide data/address paths or buses carrying parity. They have NOR Output Enables (OE0, OE1) for maximum control flexibility.
FEATURES:
- Ideal where high speed, light loading, or increased fan-in are required
- Flow through pinout architecture for microprocessor oriented applications
- Output capability: +64mA/±32mA •Slim 300 mil-wide plastic 24-pin package
- Latch-up protection exceeds 500mA per Jedec Std 17
- ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per Machine Model
- Power-up 3-State
- Inputs are disabled during 3-State mode
Vous pouvez télécharger la fiche technique dessous :
Cliquez ici
