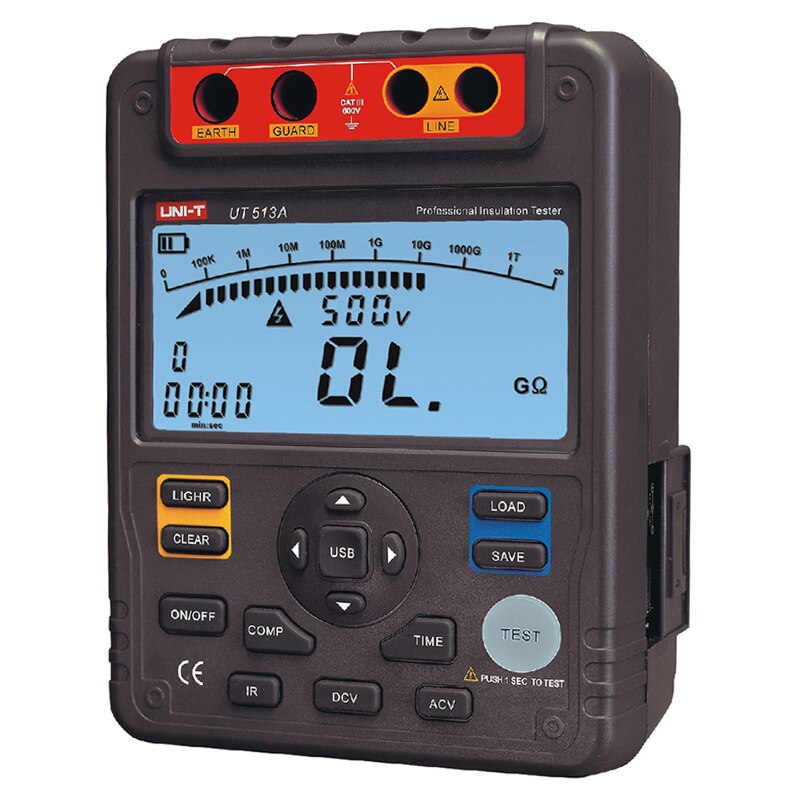

| Test Voltage | Insulation resistance (Ω) | UT513A |
| Certificates | CE, UKCA | |
| 100V | 0.1MΩ~500MΩ | |
| 250V | 0.5MΩ~2GΩ | |
|
500V |
1MΩ~4GΩ
0.5MΩ~5GΩ 0.5MΩ~20GΩ |
±(3%+5) |
| 1000V | 2MΩ~10GΩ
1MΩ~40GΩ |
±(3%+5) |
| 1500V | 5MΩ~20GΩ | |
| 2500V | 2.5MΩ~100GΩ
10MΩ~100GΩ |
±(3%+5) |
| 5000V | 5MΩ~1000GΩ | ±(3%+5) |
| DC voltage (V) | 1000V
600V |
±(2%+3) |
| AC voltage (V) | 750V
600V |
±(2%+3) |
| Test voltage accuracy | 0%~20% | |
| Short-circuit current | >3mA | |
| Low resistance (Ω) | 0.1Ω~999.9Ω | |
| Test voltage secondary display | √ | |
| USB interface | √ | |
| Timing measurement | Around 30 minutes
Around 15 minutes |
√ |
| IEC 61557 | UT513A: 61557-1:2007; 61557-2:2007 | |
| Category ratings | CAT III 600V; CAT II 1000V (UT511 only) | |
| Power | 1.5V battery (LR14) x 8 | |
DATASHEET
